ES-L01 3D Web Lights Pixel LED Matrix Lighting
ES-L01 3D Web Lights Pixel LED Matrix Lighting

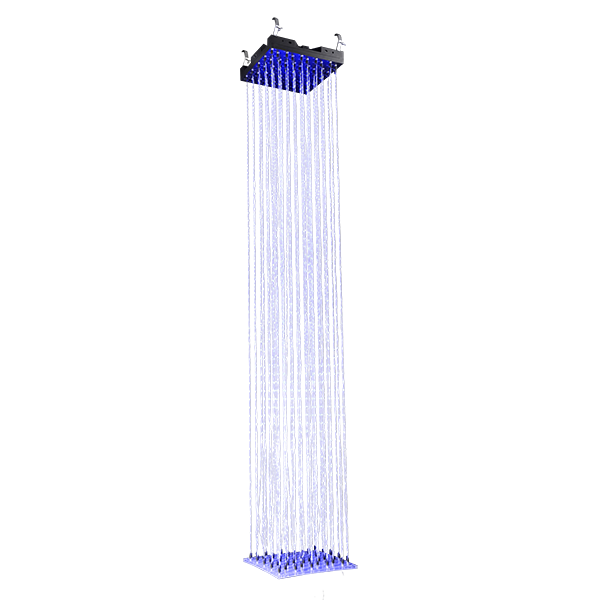

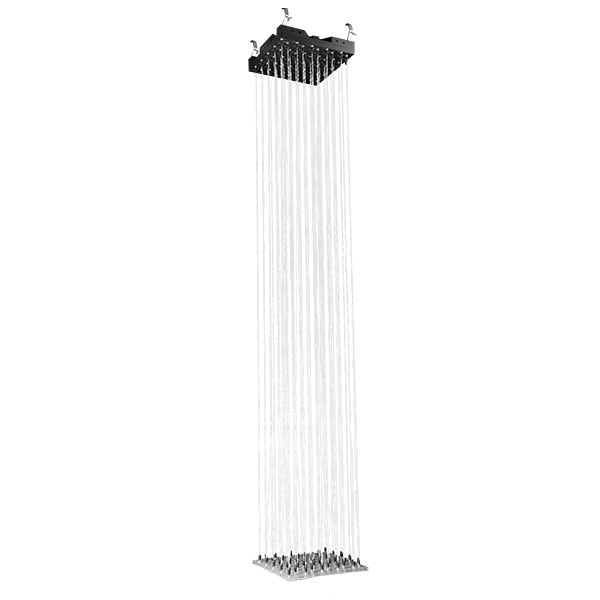

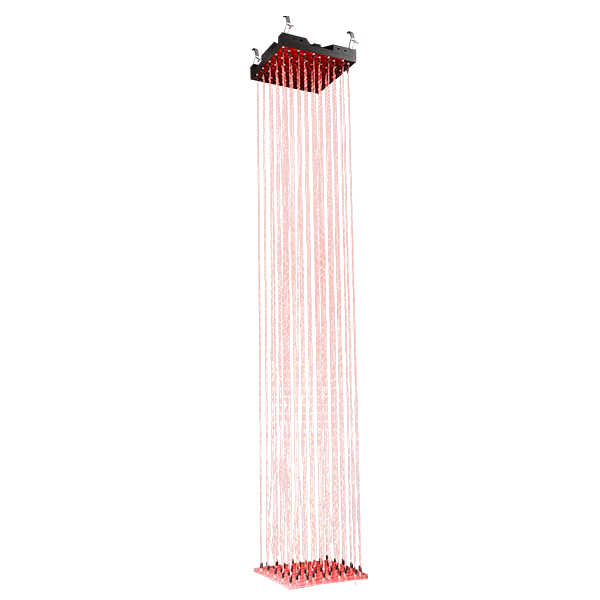

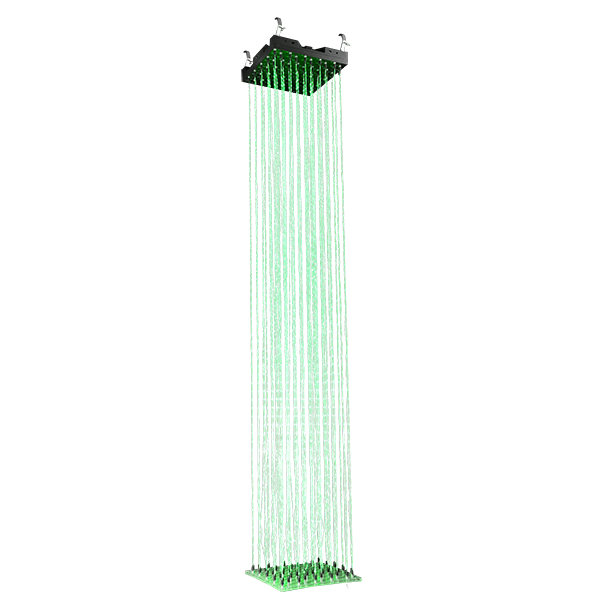

Web Light is a 3D stereoscopic LED matrix that utilizes each LED light to showcase a full 360 degree viewing experience.

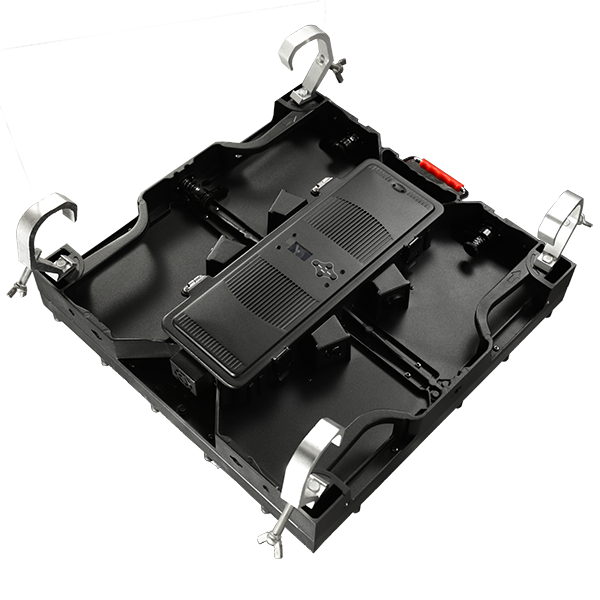

- 500*500mm Die casting structure
- Support matrix splicing and quick locking
- Support mainstream network protocols such as ArtNet and sACN

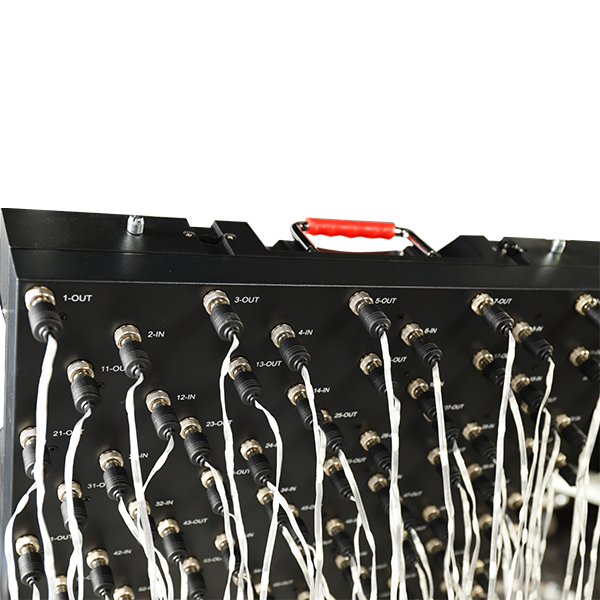

- 10*10 LED Strings, 6000pc RGB LEDs
- Support hanging with M12 light hooks
- Working power：100-240Vac, 50/60Hz
- Power connect：PowerCon/True1 IN/OUT
- Dimension：500*500*3180mm（L*W*H）
- Net weight：17.5Kg
Parameter:
Module Size: 500x500 mm
String: 3M length
LEDs per String: 60 LEDs
String Qty: 100 strings，replaceable
Resolution: 6000 LEDs
Pixel: 6000pcs
Base: 20mm Polycarbonate board 20mm
Power: Sleeping: 28W
Average: 160W
Peak: 300W
Inquiry Now
Accessory
Description
Web Light is a 3D stereoscopic LED matrix that utilizes each LED light to showcase a full 360 degree viewing experience.
- 500*500mm Die casting structure
- Support matrix splicing and quick locking
- Support mainstream network protocols such as ArtNet and sACN
- 10*10 LED Strings, 6000pc RGB LEDs
- Support hanging with M12 light hooks
- Working power：100-240Vac, 50/60Hz
- Power connect：PowerCon/True1 IN/OUT
- Dimension：500*500*3180mm（L*W*H）
- Net weight：17.5Kg
Parameter:
Module Size: 500x500 mm
String: 3M length
LEDs per String: 60 LEDs
String Qty: 100 strings，replaceable
Resolution: 6000 LEDs
Pixel: 6000pcs
Base: 20mm Polycarbonate board 20mm
Power: Sleeping: 28W
Average: 160W
Peak: 300W
