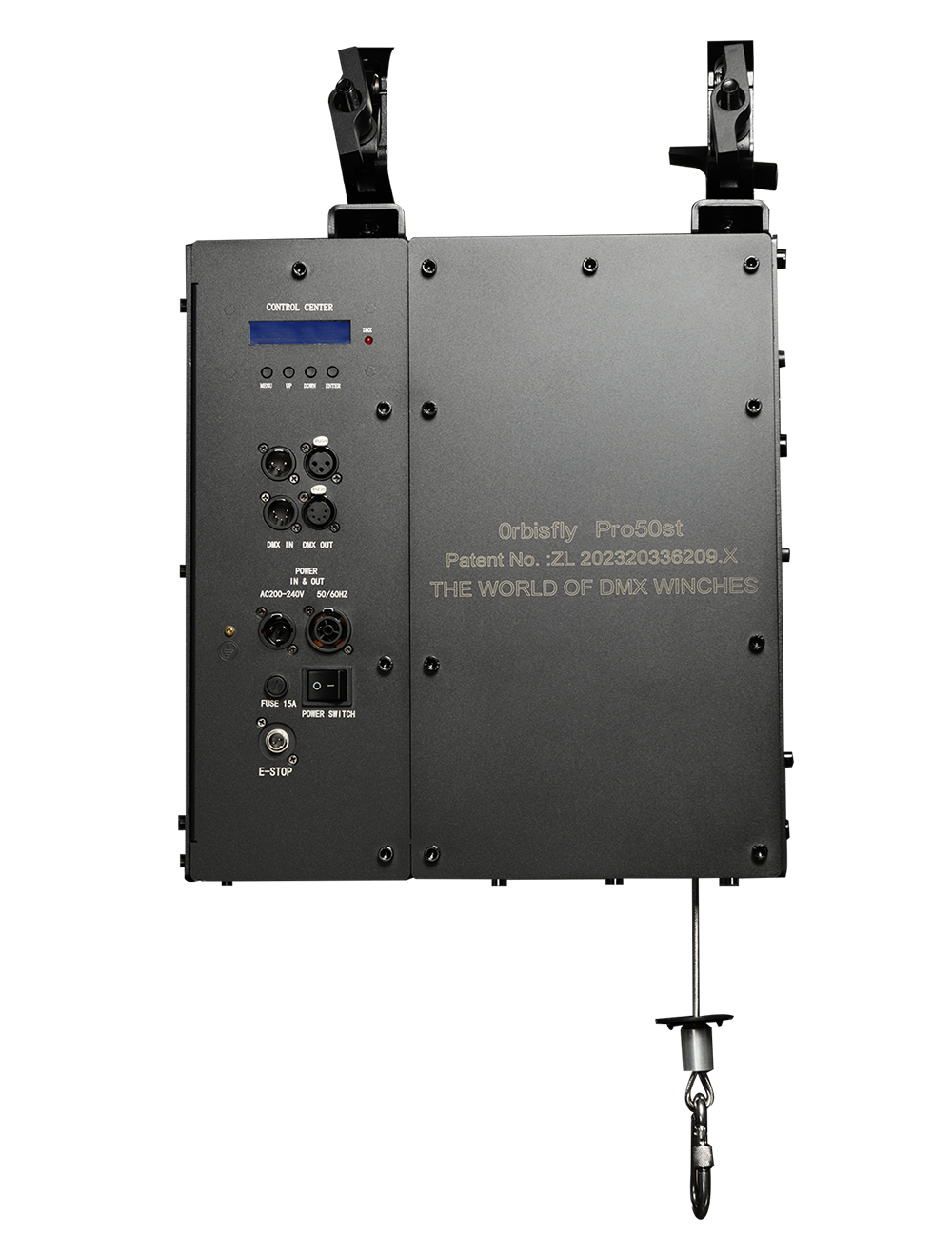

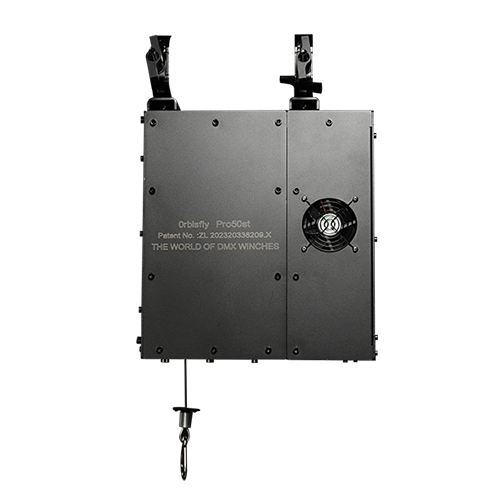

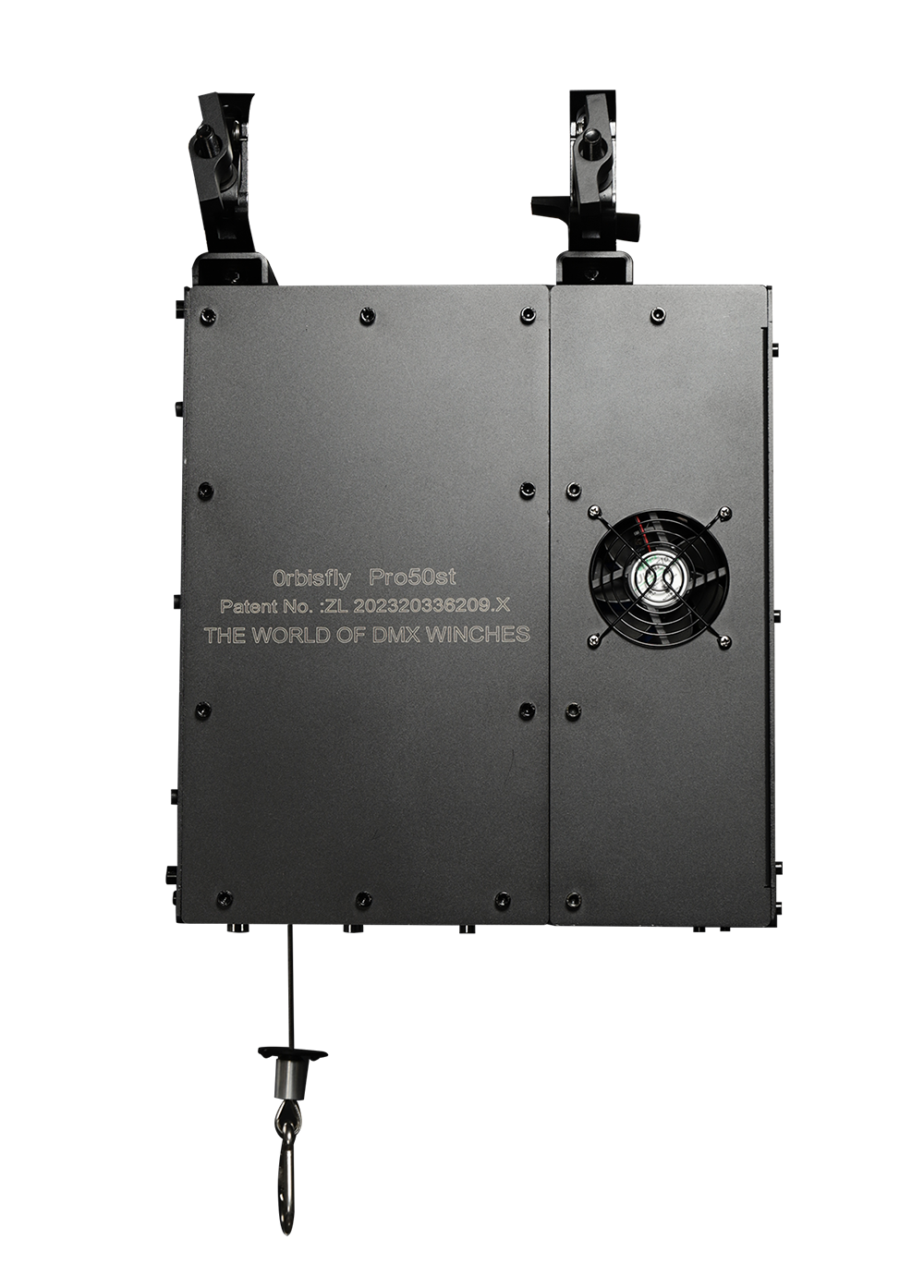

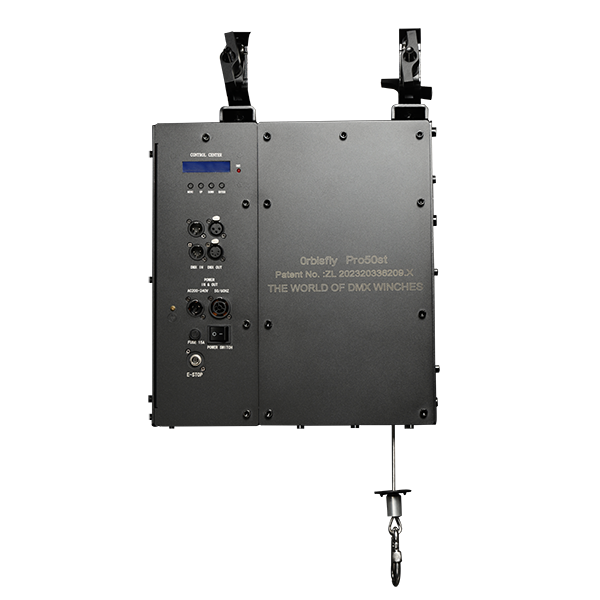

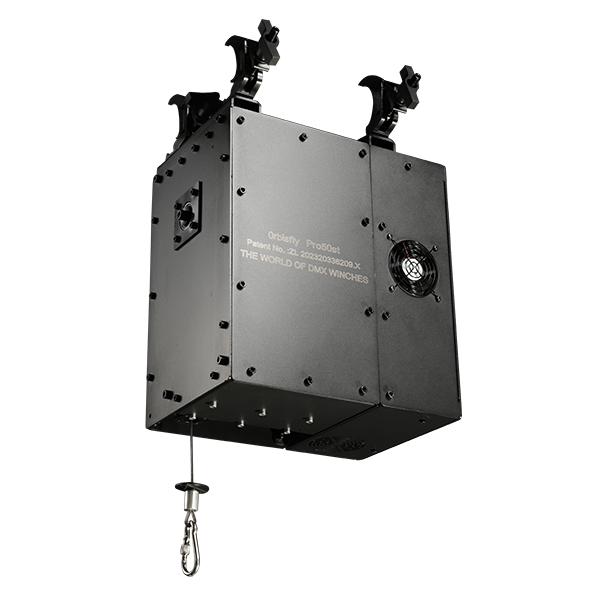

ES-L19 Orbisfly Pro50st is a single steel kinetic winch that has smooth and accurate movement, can operate more than 24 hours without interruption with 50kg load, can set lifting route and address code through RDM and give real time height feedback.
Lifting capacity: 50 kg (110.2 lb)
Lifting height:: 12m (40 ft)
Lifting speed: 60cm/s (3.5-23.6 in/s)
Through Connection - Input:: Neutrik powerCON TRUE1 & EtherCON (F)
Through Connection - Output: Neutrik powerCON TRUE1 & EtherCON (M)&XLR3&XLR5&HDMI
Voltage: 220 -240 VAC (110V need customized)
Frequency: 50-60 Hz
Power consumption: 750 W (2,4-2,1 A)
Power inlet:: Neutrik powerCON TRUE1 NACPX (F/M)
DMX channels: 4/5
DMX control connection: 3/5 Pole XLR (F/M)
Minimum load: 5 kg (11.02 lb)
Noise emission: ≈50 dB at 1m (3.3 ft)
Ambient temperature: 5-40 °C (41-104 °F)
Mounting clamp: 2 x Slim eye coupler 42-52 mm (2 in)
Motor: 230 VAC, 0.75 kW Servo Motor
