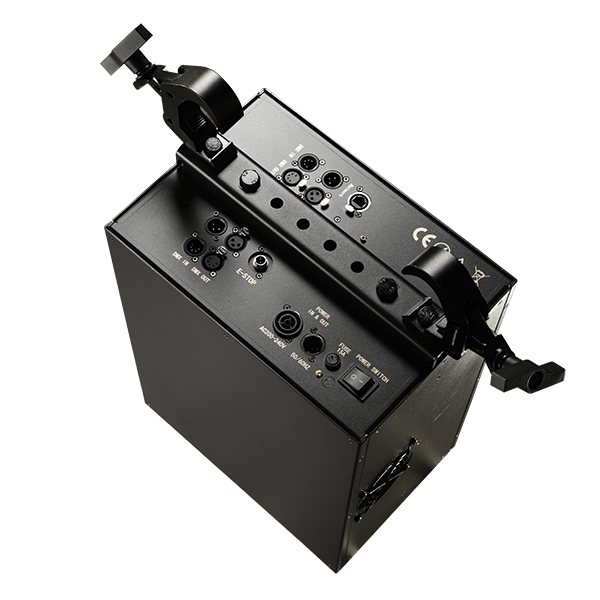

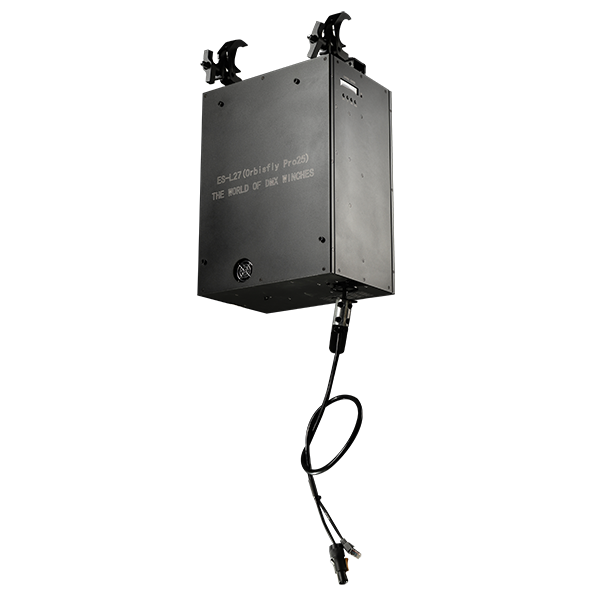

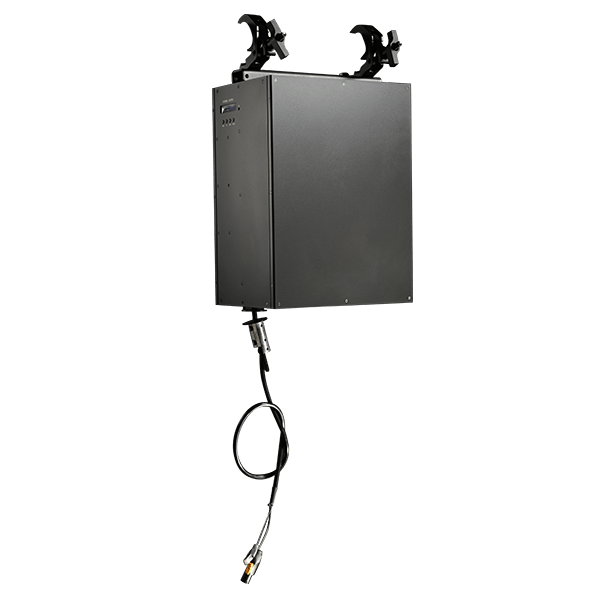

ES-L27 Orbisfly Pro25 is a single cable versatile winch that provides power and signal to light fixtures, low noise, fast, smooth and accurate movement. Servo motor drive and brake control, long cable life.
|
Item number |
Orbisfly®Pro25 (Winch 25 + Power and Cat6+HDMI(customize)) |
|
Lifting capacity |
25 kg (55.1 lb) |
|
Lifting height |
6m (20 ft) |
|
Lifting speed |
120cm/s (47.2 in/s) |
|
Through Connection - Input |
Neutrik powerCON TRUE1 & EtherCON (F) |
|
Through Connection - Output |
Neutrik powerCON TRUE1 & EtherCON (M) & XLR3 & XLR5 & HDMI（customize） |
|
Through Connection - Power |
5A/240V AC or DC (class II) 2x2x0.5mm2 (AWG18) |
|
Through Connection - Signal |
Two twisted pairs Cat6 (1000 Mbit/s) |
|
Ethernet |
1000 Mbit/s (two twisted pairs) |
|
Voltage |
110/200-240V AC |
|
Frequency |
50-60 Hz |
|
Power consumption |
750 W (2,4-2,1 A) |
|
Power inlet |
Neutrik powerCON TRUE1 NACPX (F/M) |
|
DMX control signal |
DMX 512 1990+DMX512A |
|
DMX channels |
4/5 |
|
DMX control connection |
3/5 Pole XLR (F/M) |
|
Fleet angle |
None |
|
Minimum load |
2 kg (4.4lb) |
|
Noise emission |
≈40 dB at 1m (3.3 ft) |
|
Ambient temperature |
5-40 °C (41-104 °F) |
|
Mounting clamp |
2 x Slim eye coupler 42-52 mm (2 in) |
|
Motor |
230 VAC, 0.75 kW Servo Motor |
|
Weight |
28 kg (61.7 lb) |
