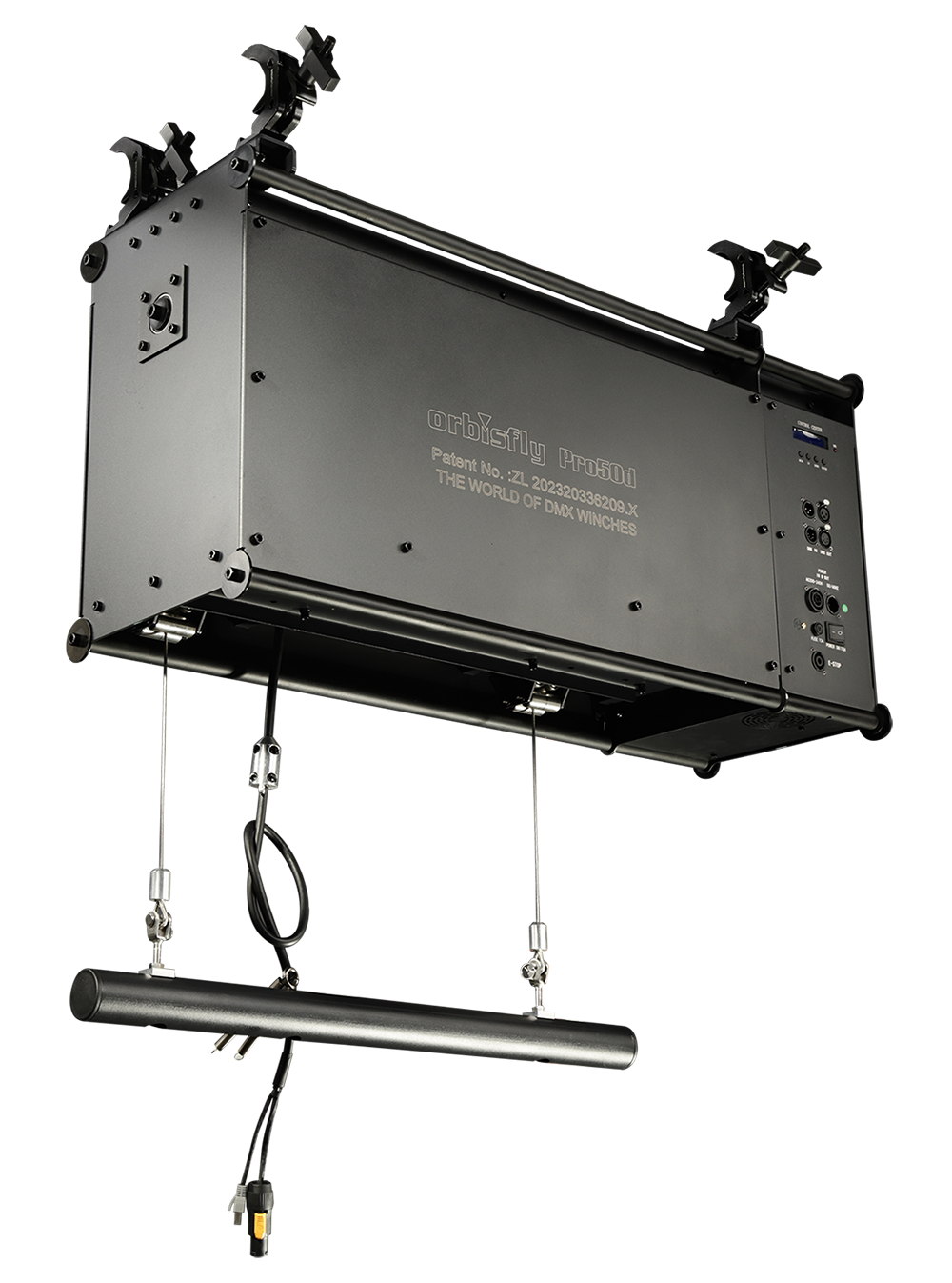

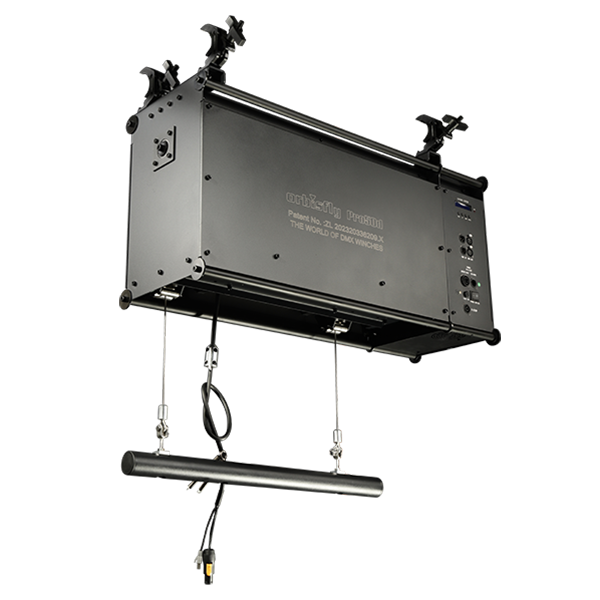

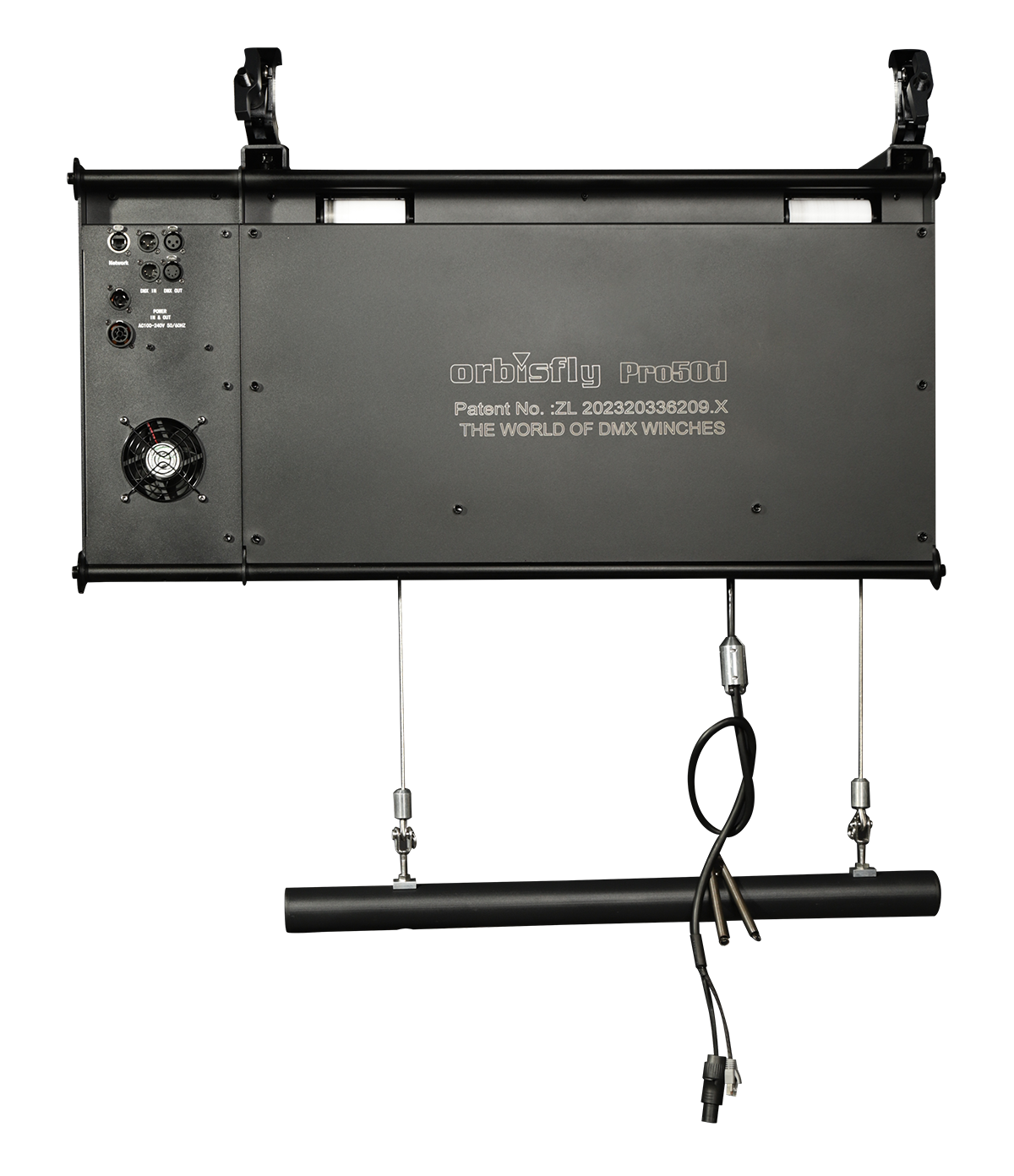

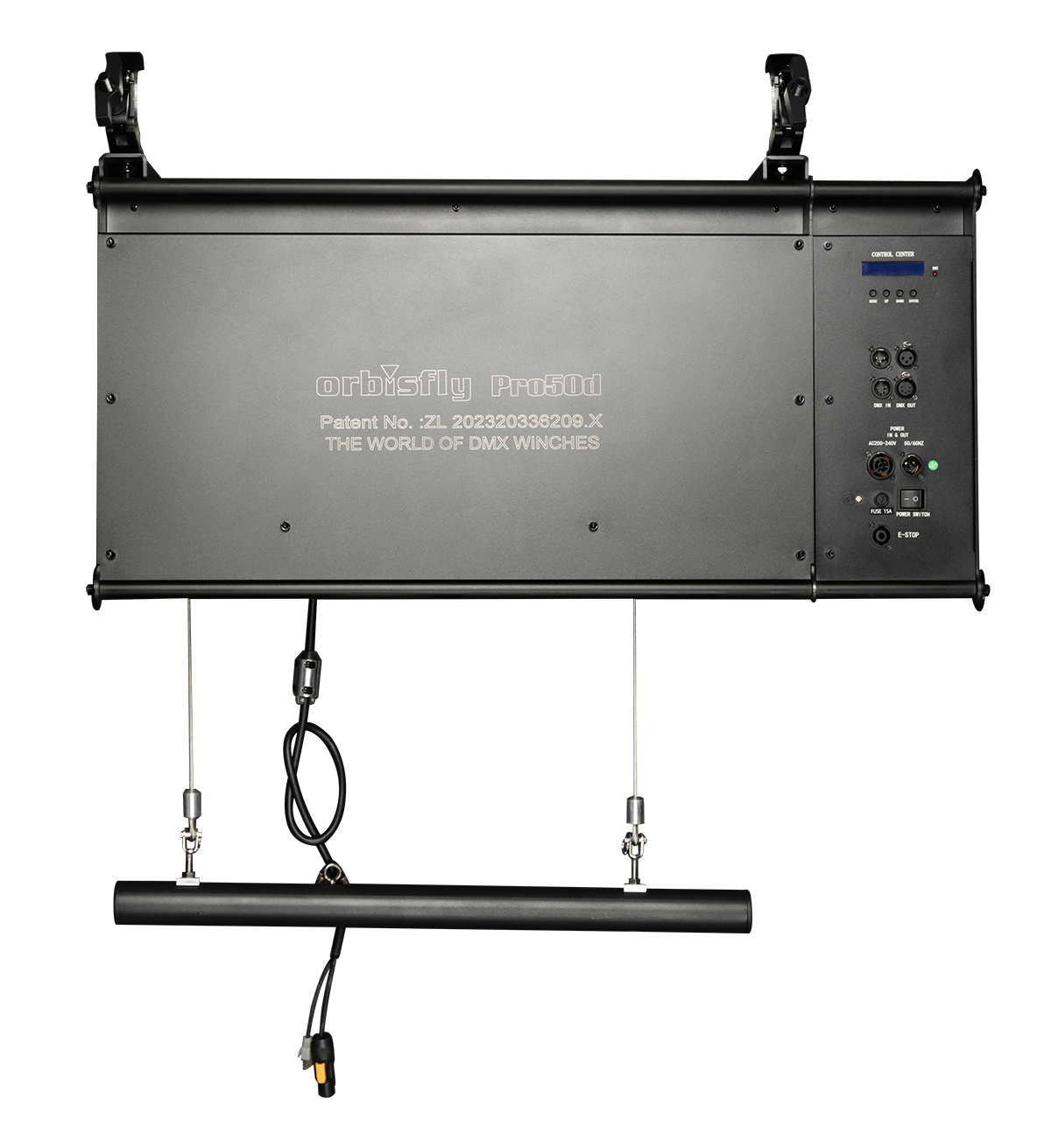

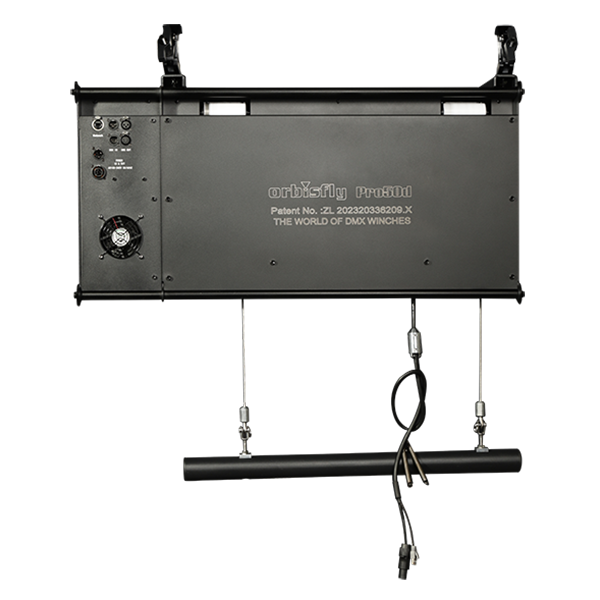

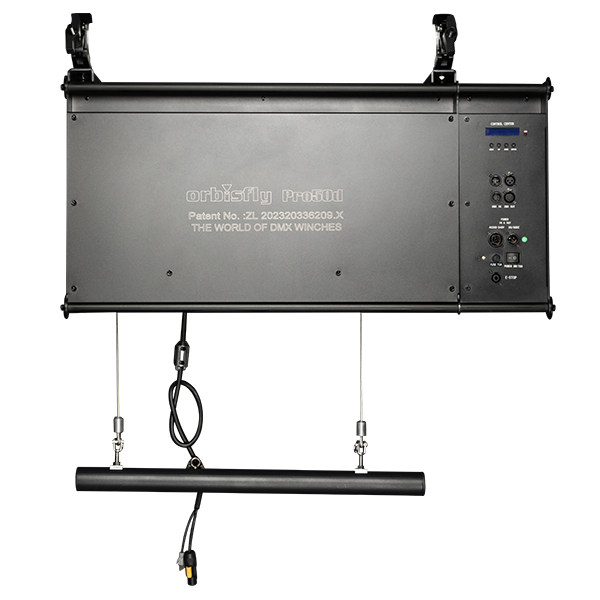

ES-L32 Orbisfly Pro50d Winch Double + Power and Cat6 is a versatile winch that provides power and signal to light fixtures, servo motor drive and brake control, can operate more than 24 hours without interruption with 50kg load, can set lifting route and address code through RDM and give real time height feedback. Long cable life.
Specifications:
|
Item number |
Orbisfly®Pro50d(Winch 50 Double + Power and Cat6) |
|
Lifting capacity |
50 kg (110.2 lb) |
|
Lifting height |
12m (40 ft) |
|
Lifting speed |
60cm/s (3.5-23.6 in/s) |
|
Through Connection - Input |
Neutrik powerCON TRUE1 & EtherCON (F) |
|
Through Connection - Output |
Neutrik powerCON TRUE1 & EtherCON (M)&XLR3&XLR5&HDMI |
|
Through Connection - Power |
5A/240VAC or DC (class II) 2x2x0.5mm2 (AWG18) |
|
Through Connection - Signal |
Two twisted pairs Cat6 (1000 Mbit/s) |
|
Ethernet |
1000 Mbit/s (two twisted pairs) |
|
Voltage |
200 -240 VAC (110V need customized) |
|
Frequency |
50-60 Hz |
|
Power consumption |
750 W (2,4-2,1 A) |
|
Power inlet |
Neutrik powerCON TRUE1 NACPX (F/M) |
|
DMX control signal |
DMX 512 1990+DMX512A |
|
DMX channels |
4/5 |
|
DMX control connection |
3/5 Pole XLR (F/M) |
|
Snap hook |
2x8 mm (5/16 in) galvanized steel w/Bar 652 mm (25.2 in) |
|
Fleet angle |
None |
|
Fleet travel |
83 mm (3.3 in) |
|
Minimum load |
5 kg (11.02 lb) |
|
Noise emission |
≈50 dB at 1m (3.3 ft) |
|
Ambient temperature |
5-40 °C (41-104 °F) |
|
Mounting clamp |
4 x Slim eye coupler 42-52 mm (2 in) |
|
Motor |
230 VAC, 0.75 kW Servo Motor |
|
Lifting wire |
3 mm (1/8 in) 19x7 galv. steel wire (EN 12385-4) |
|
Minimum wire breaking load |
588 kg (5766 N / 1296 lb) |
|
Wire safety factor |
>10 |
|
Expected wire lifetime - 10 kg (22 lb) load |
Pending |
|
Expected wire lifetime - 20 kg (44.1 lb) load |
Pending |
|
Expected wire lifetime - 40 kg (88.2 lb) load |
Pending |
|
Shipping weight |
55 kg (121.2 lb) |
|
Weight |
53,5 kg (117.9 lb) |
